Connected Transit

Hello All,

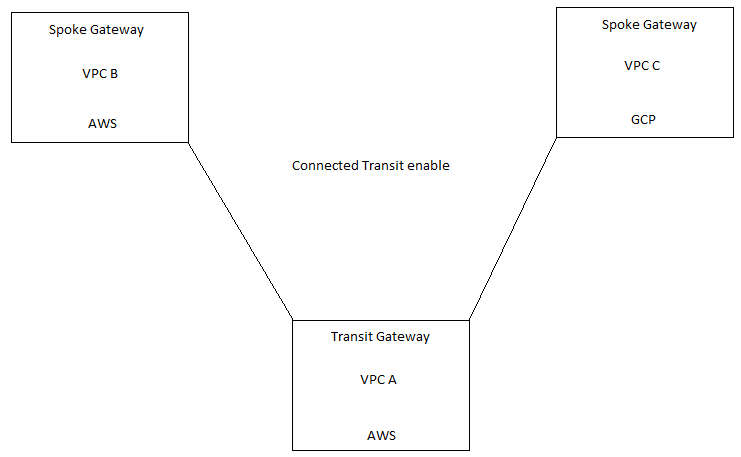

I have question about Connected Transit with this topology.

Is it possible for VPC B & C to communicate with each other ?

I follow https://docs.aviatrix.com/HowTos/transitvpc_workflow.html

https://docs.aviatrix.com/HowTos/transit_advanced.html#connected-transit

not successful yet, appreciate your help.



Thank you.

9replies Oldest first
  • Oldest first
  • Newest first
  • Active threads
  • Popular
  • Hi Estint, from first glance I would say this should work. How are you testing this and what troubleshooting steps did you take?

    Like
  • Hi Dennis,

    Thanks for your help.

    I'm not yet testing the connection, because i'm not see prefix 10.21.0.0/16 on VPC B route tables

    and prefix 10.24.0.0/16 on VPC C route tables.

    Thank you.

    Like
  • Hello!  Yes, enabling connected transit is a requirement for spoke gateways to talk to each other.  You will see the route tables populate after enabling that feature.

    Like
  • Hi Spence,

    Thanks for your reply.

    I already enabled it before and the route tables not populate.

    Like
      • Spence N
      • Spence_N
      • 1 mth ago
      • Reported - view

      Estint The routes won’t show up in the VPC route tables.  They will be in the Spoke Gateway route table.

      Like
  • Hi Spence,

    How they can reach each other if no route in there ?

    I already try put static route on both side and still can't too.

    And I already open security group on both side too.

    Like
      • Spence N
      • Spence_N
      • 1 mth ago
      • 1
      • Reported - view

      Estint Each VPC Route table will have a 10.0.0.0/8 inserted by the AVX Controller pointing at the Spoke Gateway of the VPC.  The spoke gateways have a route to each local subnet VPC with a destination of the VPC default gateway.

      So traffic from VPC B headed for VPC C will start by using the 10.0.0.0/8 route in the vpc route table with a destination of the Spoke B Gateway.  The Spoke B Gateway then has a route for VPC C, with a destination of the vpn tunnel interface of the transit gateway.  The transit gateway has a route to VPC C with a destination of the spoke C vpn tunnel.  The Spoke Gateway in VPC C, receives the traffic and has a local gateway route to the VPC and drops the traffic off at the VPC C default gateway.  Which is then locally routed by the default gateway.


      Make sense?  If not I could do a zoom session or something and walk through it with you next week.

      Like 1
  • Hi Estint,

    I would recommend using Flightpath on the Controller to troubleshoot connectivity between endpoints in both VPC's. This will quickly indicate which point(s) are preventing end-to-end communication.

    Best regards,

    Mark

    Like 1
  • Hi All,

    Sorry just back from on leave.

    Problem solved.

    Thanks all for your help.

    Appreciate all your help.

    Thank you.
